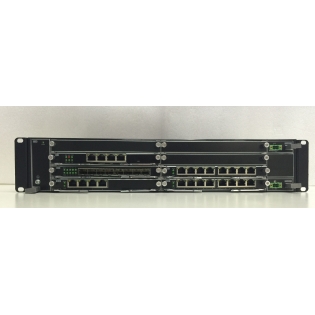

RYT6000-2UC is a new-generation multi-service transmission platform independently developed to meet the needs of building a high-security and high-performance network. It adopts a modular design of core functions, supports multiple service interface types, and has flexible port configuration and perfect OAM mechanism. It supports multiple Ethernet The network service type supports multiple network-level protection functions, and is easy to manage, maintain, and upgrade. It fully meets the network needs of users to realize high-bandwidth data exchange, multiple interface types, and intensive high-speed access servers.
The future-oriented ALL IP architecture fully protects existing investments.
The perfect clock solution perfectly solves the clock problem of mobile bearers.
The most comprehensive multi-service interface support, powerful PWE3 function, meet a variety of application scenarios, business deployment is more flexible.
End-to-end QoS capabilities, high-quality service delivery.
OAM mechanism.
Carrier-grade reliability design.
Low power consumption and energy saving design.
The unified network management system and E2E business management capabilities enhance the packet network operation capabilities.
The unified and advanced RYTNMS network management system integrates the powerful management capabilities of the access network, transmission network, and metro equipment, and provides a unified high-performance network management platform.
MPLS protection switching time: Tunnel1:1<50ms;
LAG protection switching time: <200ms;
Working temperature: -10℃～55℃;
Storage temperature: -40℃-70℃;
Operating humidity: 10%-95%HR non-condensing
Storage humidity: 5%-90% HR without condensation
Working altitude: -60m～+4000m
Power supply: 36~72VDC
Maximum power consumption: 150W

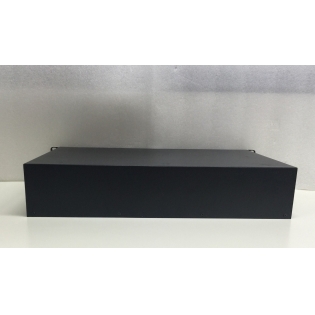

Dimensions: 440mm (length) × 255mm (width) × 88mm (height), with mounting ears, rack mountable
