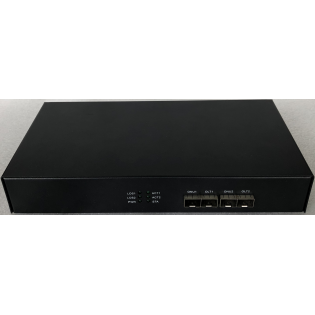

RYT7000-GP2 RYT7000-GP2PON signal amplifier is used for optical power amplification equipment of GPON line. It uses OEO to amplify and shape the signal. At the same time, it uses the downlink signal to extract the clock to retime the signal, which can effectively amplify the optical power of the PON line and extend the transmission distance of the network. It has the characteristics of compact structure and convenient installation, and can be widely used in various types of GPON cell access, fiber optic home entry and other fields.

PON repeater is an optical transmission equipment which magnify and reshape signals during optical transmission process. The PON repeater can provide 3R (i.e. re-amplification, reshaping and retiming) regeneration to signals during optical transmission, amplify weak input of optical signals, complete regeneration of electrical signals, and make transmission distance of PON become longer and support more extended users.The PON repeater device can effectively save OLT quantity and lengthen network transmission distance. The repeater equipement have been widely applied for long-distance transmission in various optical communication applications.

 Extend PON system transmission distance from 20km to 60km or even 80km;
 3R signal regeneration;
 Be compatible with GPON or EPON system;
 Be compatible with GPON/EPON OLT and ONU equipment manufactured by different vendors;
 1U desktop equipment, small space occupation and low power consumption;
 Support kinds network management modes, local management on terminal console; Telnet-based remote logon network management, SNMP-based management.

Functional attributes	parameters
Function parameter	Provides 4 standard SFP slots and supports independent 2-way GPON / EPON signal amplification
	GPON: burst rate of 1.25G uplink signal, downlink rate of 2.488G EPON: burst rate of 1.25G uplink signal, downlink rate of 1.25G
	Compatible with GPON / EPON equipment from different manufacturers (Huawei, ZTE, Fiberhome, Bell, etc.)
	Supports transparent transmission of services
	Increase the split ratio to 1:64
	Support CONSOLE port to view related status and alarm information, baud rate: 115200
	Support optical module management
	Support PON interface performance statistics
	Support WEB management of out-of-band network port, support online firmware upgrade
Interface module	Support pluggable l optical module (SFP package)
Operating temperature	-10 ℃ ~ 60 ℃
Power interface	AC/DC：220V/48V,
Power	≤8W
