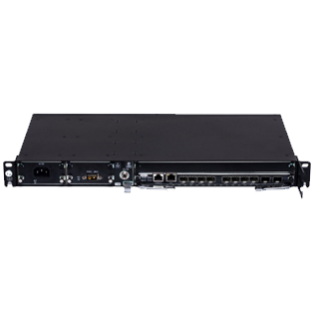

RYT7000-1UC The PON aggregation remote equipment is located at the access optical cable layer between the OLT and the splitter, to realize the aggregation transmission of the multi-core optical cable with the same route between the OLT and the splitter, and at the same time to extend the GPON signal through the photoelectric relay. The maximum transmission coverage between GPON OLT and ONU is 40km.

This product can choose 48V DC input or 220V AC input. There is one ETH management port and one console port on the main control board. Two service slots support the aggregation and extension of 16 PON services at a maximum. Each line card works independently. It has the characteristics of high reliability, high integration, and high cost performance. It satisfies customers' business growth and reliability. demand.

Support GPON and EPON business aggregation and extension, to meet the equipment of mainstream OLT/ONU manufacturers;
Support in-band network management, realize OLT end management of ONU end equipment, and support visual network management;
Support OEO 3R regeneration function of PON port;
Support preamble compensation for upstream PON burst signals;
Support DDM function;
Support power supply 1+1 backup;
Support hot swappable;

Working temperature -10℃～55℃,
Storage temperature: -40℃-70℃
Operating humidity: 10%-95%HR non-condensing
Storage humidity: 5%-90% HR without condensation
Working altitude: -60m～+400
