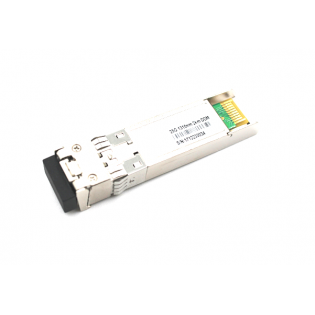

The RYTQB01 series multi-mode transceiver is SFP28 module for duplex optical data communications up to 28.05Gb/s. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm.
The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features
l Operating data rate up to 28.05Gbps
l 850nm VCSEL Transmitter
l Distance up to 100m @50 / 125 um OM4
l Distance up to 70m @50 / 125 um OM3
l Single 3.3V Power supply
l Duplex LC Connector Interface, Hot Pluggable
l Built-in dual CDR
l Compliant with SFP28 Specification SFF-8402
l Power Dissipation < 1.2W
l Operating Case Temperature
Standard: 0℃~+70℃
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
50 / 125 um MMF OM3 |
|
2 |
|
70 |
m |
|
50 / 125 um MMF OM4 |
|
2 |
|
100 |
m |
|
Data Rate |
|
|
|
28.05 |
Gbps |
|
Transmitter |
|||||
|
Centre Wavelength |
λC |
840 |
850 |
860 |
nm |
|
Spectral Width (RMS) @ 28.05Gb/s |
Δλ |
|
|
0.6 |
nm |
|
Average Output Power: 50 MMF |
Pout |
-6.7 |
|
2.4 |
dBm |
|
Optical Modulation Amplitude @ 28.05 Gb/s |
OMA |
-3.2 |
|
|
dBm |
|
Vertical Eye Closure Penalty @ 28.05 Gb/s |
VECP |
|
|
3.13 |
dB |
|
Receiver |
|||||
|
Centre Wavelength |
λC |
840 |
850 |
860 |
nm |
|
Receiver Sensitivity(OMA)*Note4 |
Pmin |
|
|
-10.2 |
dBm |
|
Receiver Overload |
Pmax |
3 |
|
|
dBm |
|
Optical Return Loss |
ORL |
|
|
-12 |
dB |
|
LOS De-Assert |
LOSD |
|
|
-13 |
dBm |
|
LOS Assert |
LOSA |
-30 |
|
|
dBm |
|
LOS Hysteresis |
|
0.5 |
|
|
dB |
